Introduction of Rotary Drum Churning Granulator Fertilizer Making Machine

Rotary drum churning granulator is a hot-selling granulation equipment. It is suitable for a wide range of raw materials, such as fertilizers, crops, food additives, medicines, minerals, etc. The new wet granulation method is adopted, and the mixing and homogeneous materials are realized through the agitator and the drum. There is no need to dry and pulverize the raw materials before granulation, and it can be processed into spherical granules directly by batching. It can produce 1-20 tons of organic compound fertilizer per hour, which is very popular among large and medium-sized enterprises. Combined with relevant supporting equipment, it can form a granular fertilizer production line.

Feature of Rotary Drum Churning Granulator Fertilizer Making Machine

1. The fermented material can be granulated directly without drying and crushing

2. Organic matter content is 100%, without any additives

3. After granulation, the finished granules are solid and can be sieved directly without drying

4. Using wet granulation, large output and low energy consumption

Working Process of Rotary Drum Churning Granulator Fertilizer Making Machine

Using the air force generated by high-speed rotation and mechanical agitation, the materials can be continuously mixed, granulated, and densified in the granulator to form solid spherical particles. The ball forming rate of this equipment is as high as 90%, and the particle size is generally between 0.3-3mm. Adjusting the water content of the mix and the spindle speed can change the particle size.

Technical Parameter of Rotary Drum Churning Granulator Fertilizer Making Machine

ModelBody Power (kw)Spindle Power (kw)
Capacity (t/h)Inatalled Size(mm)

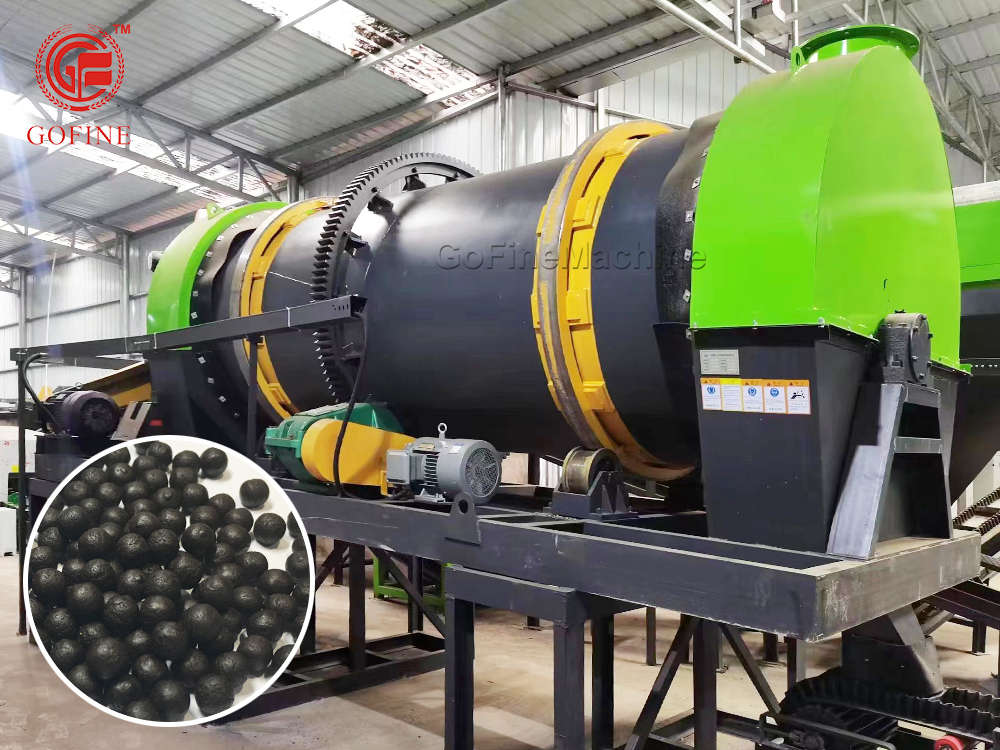

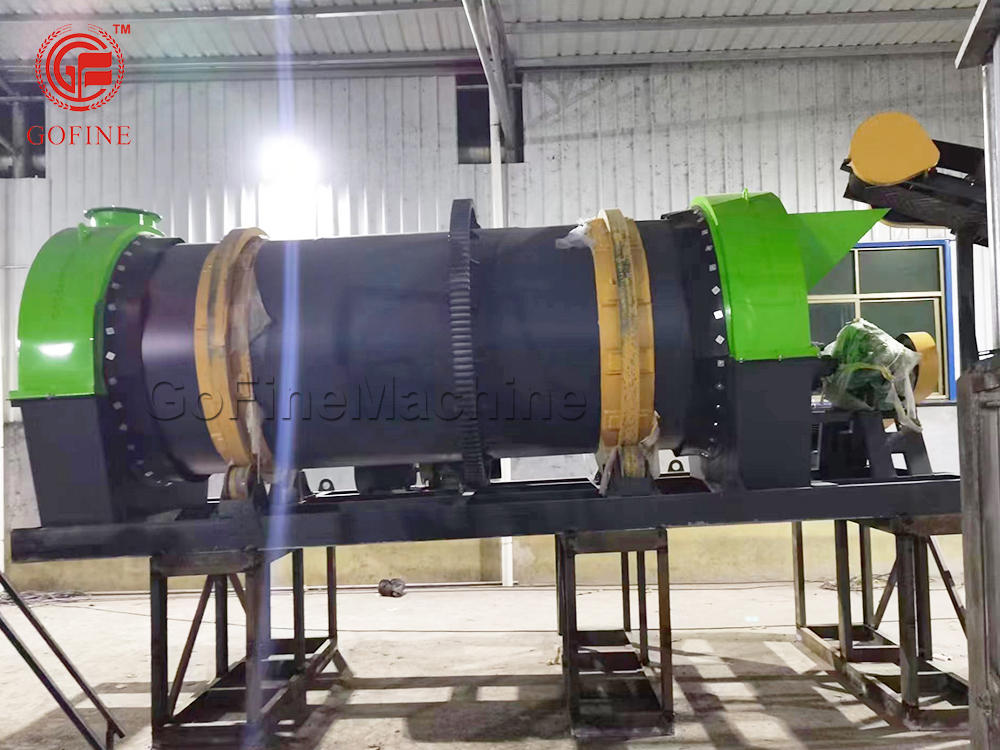

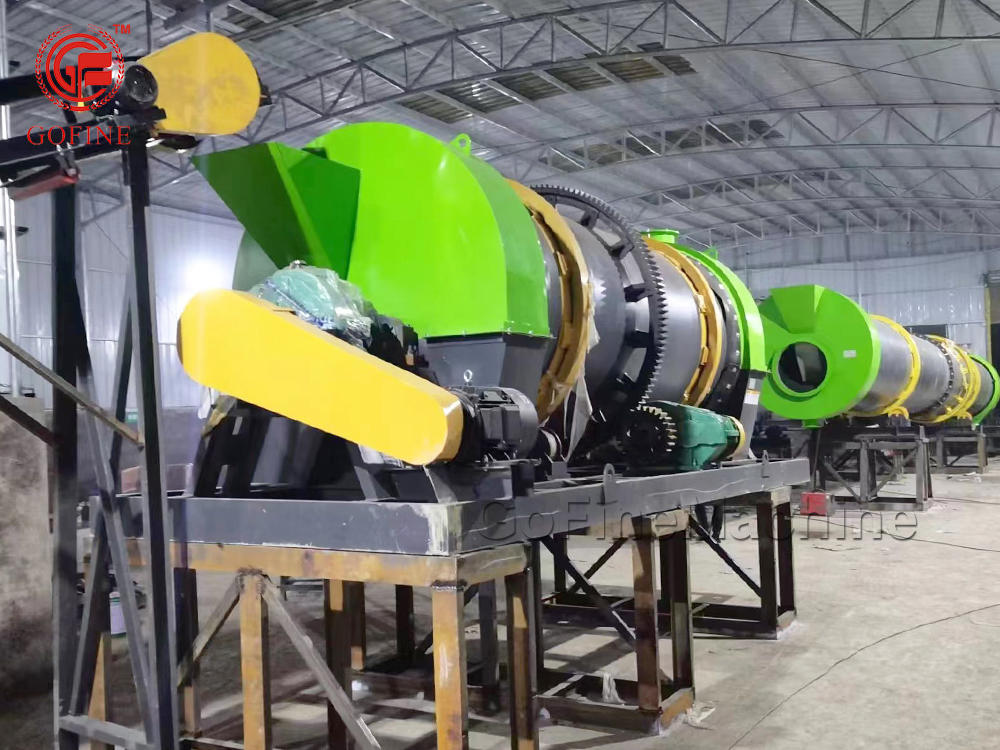

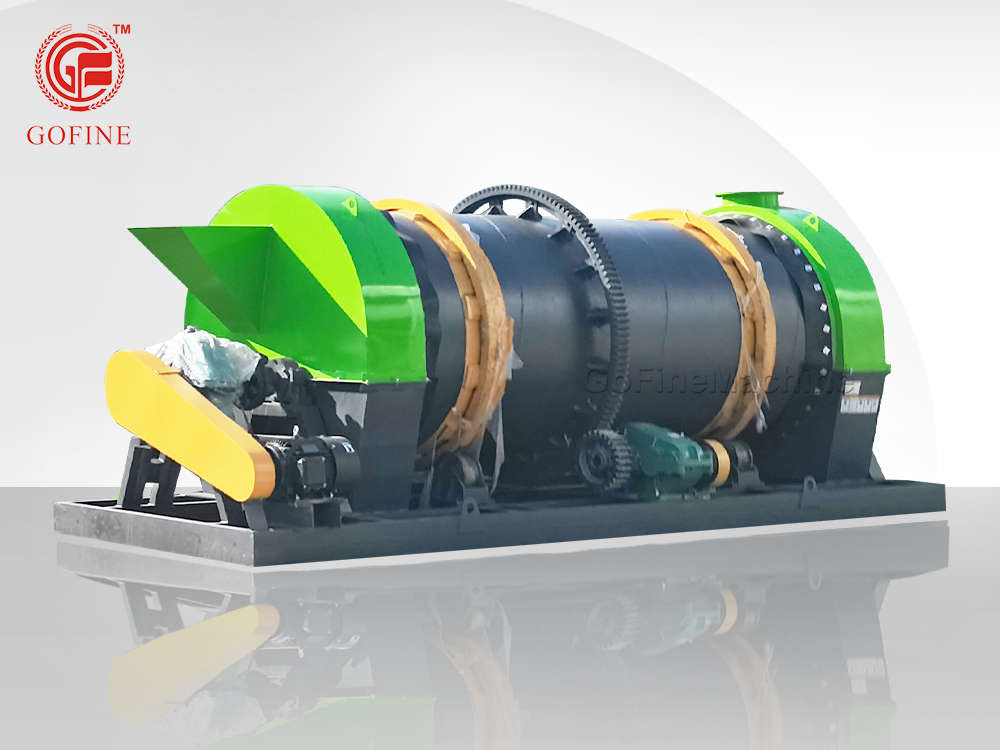

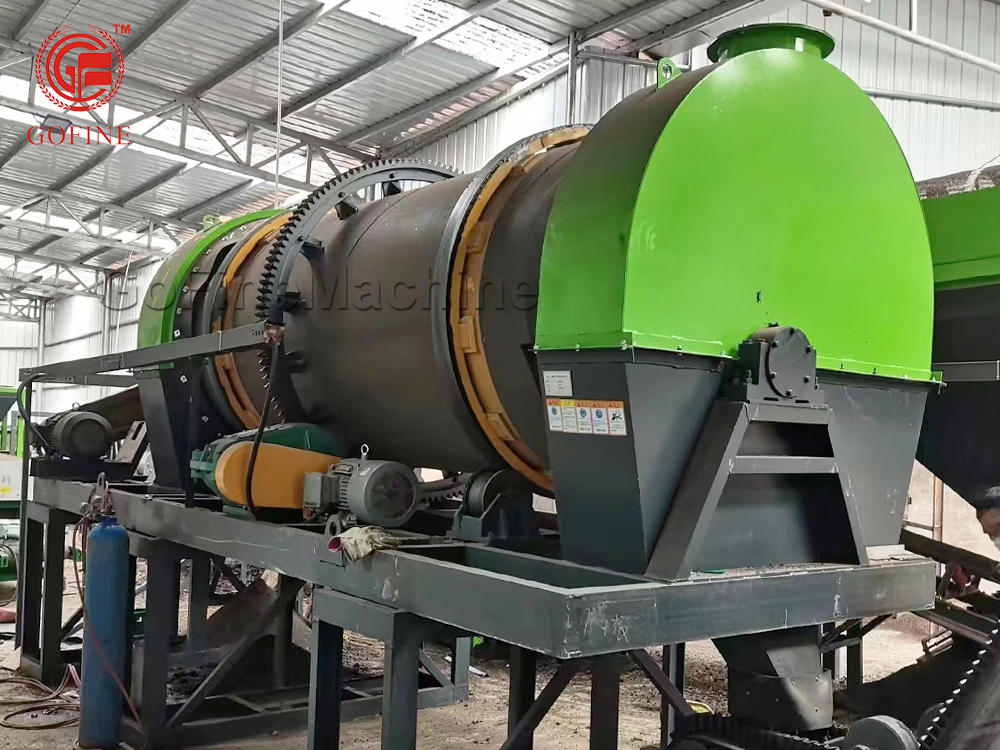

Product Details of Rotary Drum Churning Granulator Fertilizer Making Machine
